My Contribution

1.

Derived the recursive formula of Bellman equation for convex economic dispatch (ED) problem

2.

Designed discrete dynamic programming (DP) for non-convex ED and dynamic ED (DED) problem

•

Implement scalable and decentralized algorithms to consider anytime plug-in & plug-out power generation

3.

Validated discrete DP effectiveness through numerical case studies on a non-convex ED and large scale power system with 53 generation units

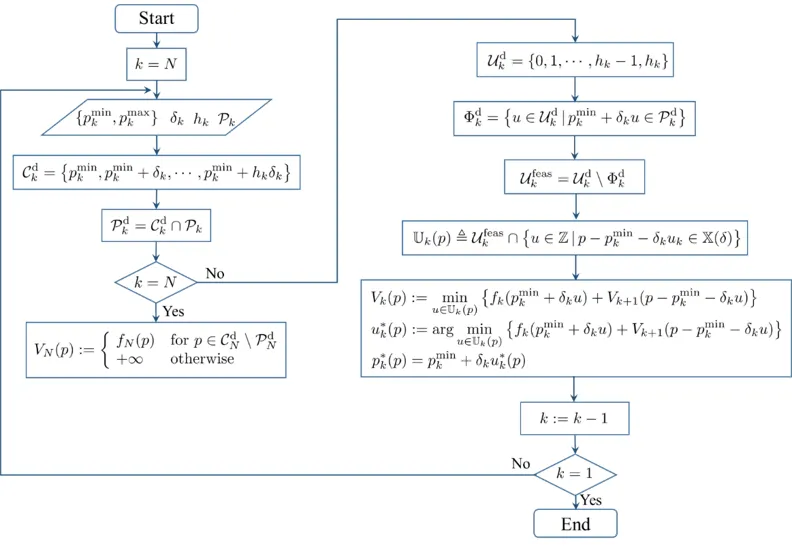

#### Flowchart for the Backward Induction of Discrete DP for ED

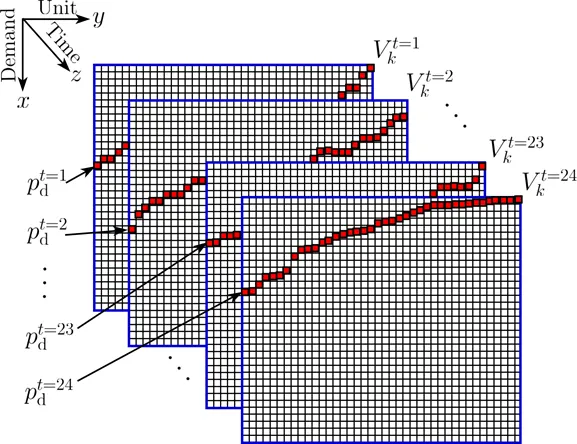

#### Schematic diagram of using pre-computed value table for DED

In Details

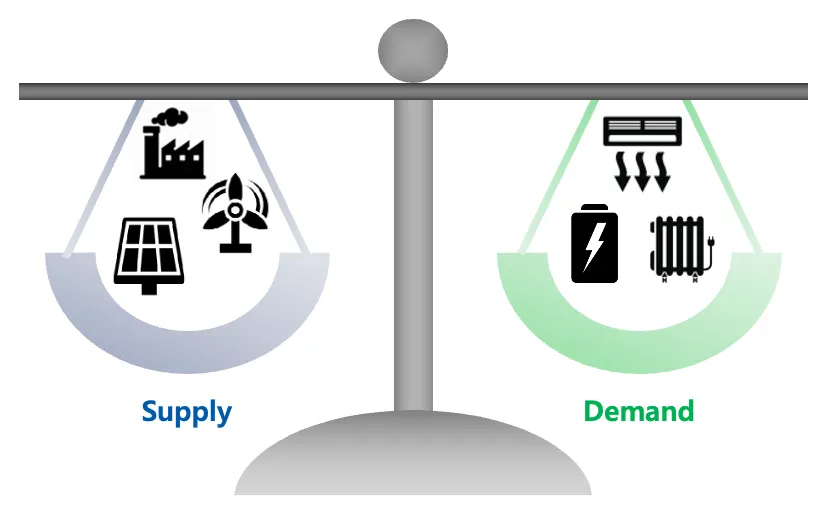

#### ED concept

•

Optimization problem in which the objective is to minimize the total power generation cost under physical limitations of distributed generators and demand–supply balance

•

Conventional ED problem formulation

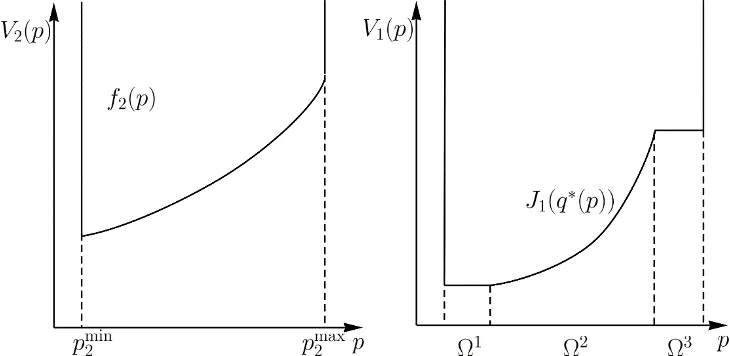

#### Two-generator problem for ED with a generation-capacity limit

•

The value functions are piecewise quadratic in the state of power demand

#### Discrete DP for non-convex ED

1.

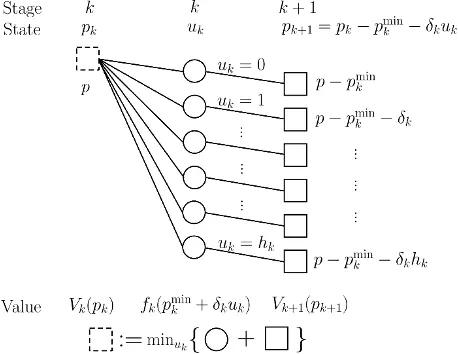

Scheme of backward induction process

2.

Case Studies

•

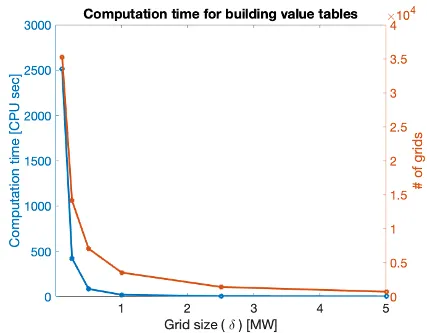

Correlation between grid size and computation time for value function

•

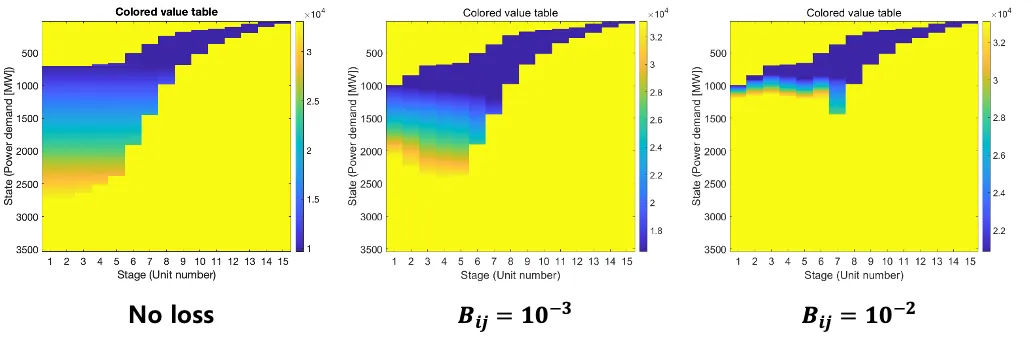

Compare value tables based on transmission loss between generators

#### Discrete DP for DED

•

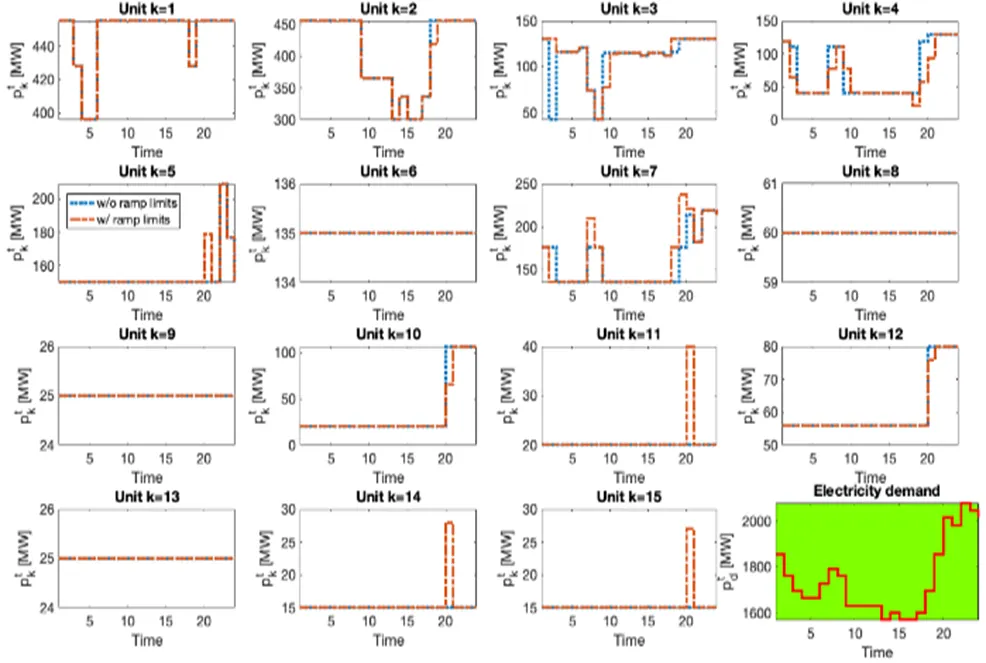

Time-varying power generation profile with discrete DP in a DED problem with ramp constraints
